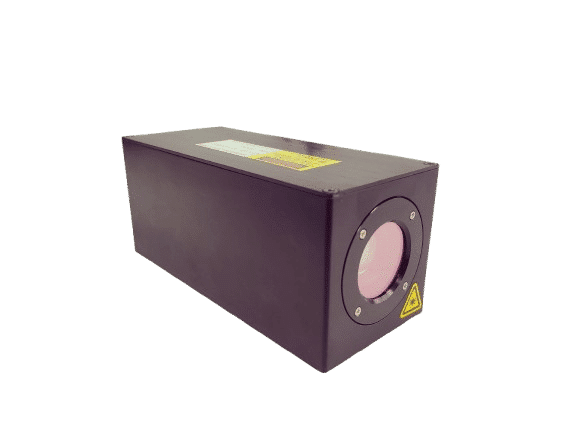

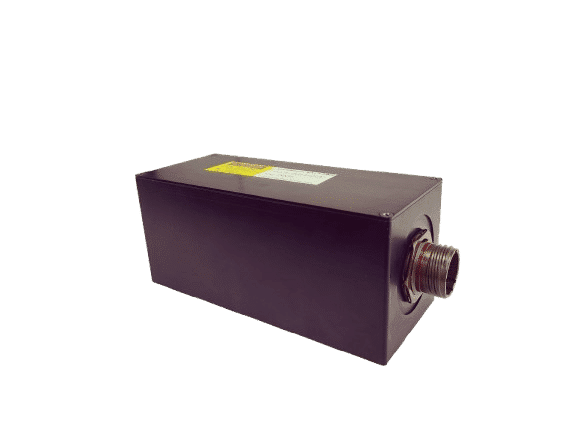

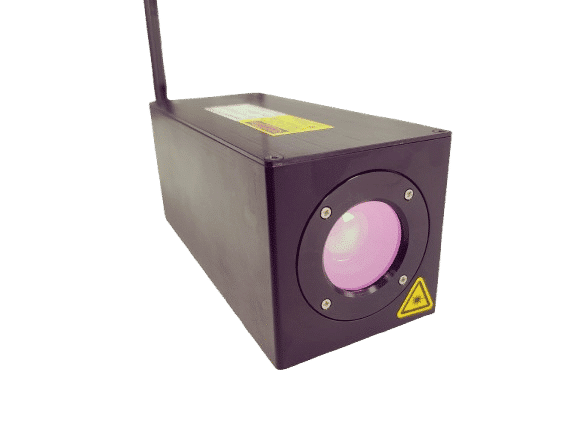

VariaBeam XACT EXcel is a unique laser Pointer-Illuminator, enabling the user to vary the beam from 1mrad up to 13mrad without any moving parts

• Fast and continuous varying mechanism
• The system could be synchronized with the viewing system to create a smooth zooming and illuminating experience while maintaining a simple operation
• The device contains a special component that homogenizes the power distribution across the beam
• TEC-regulated laser-diode (830nm Variant)
• Power-regulated by thermal sensing



Parameter	Value
Wavelength	830nm / 940nm / 1270nm (Other Wavelengths available)
Output Power	2W (Other options available)
Beam Divergence (1/e)	From 1.1mrad to 6mrad (or 2-13mrad)
Operational Mode:	CW, Flash
Input	User Defined
ENABLE	User Defined
Monitoring Output	Exist
Bore-Sight	Electronic
Dimensions	(L)183.6 x (W)71 x (H)72.5 mm
Weight	<720gr
Operating Temperature	-20Cᵒ up to +65Cᵒ
Storage Temperature	-30Cᵒ up to +70Cᵒ
