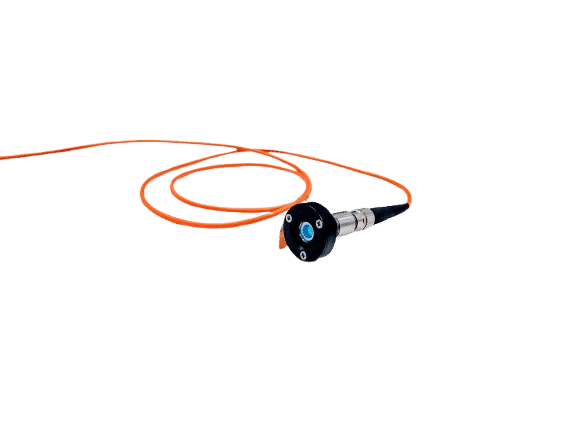

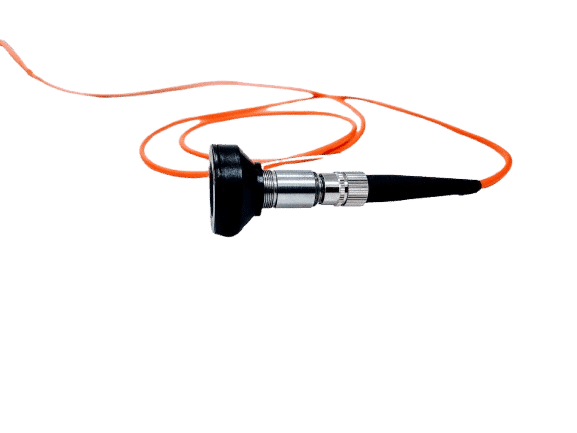

The VariaBeam LMN® is an extremely compact and unique laser illuminator module, enabling the user to vary the illumination beam from 5mrad up to 6.5⁰ without any moving parts or engine.
the varying mechanism is fast and continuous.
moreover, the system could be synchronized with the viewing system to create a smooth zooming and illuminating experience while maintaining a simple operation.
| Parameter | Value |
|---|---|
| Wavelength | 830nm (Other Wavelengths available) |
| Output Power | 2W (Other options available) |
| Beam Divergence (1/e) | From 5mrad to 6.5⁰ |
| Operational Mode: | CW, Flash (up to 5Hz by pulsed input from customer to the ENABLE line) |
| Input | User Defined |
| ENABLE | User Defined |
| Monitoring Output | Exist |
| Bore-Sight | Optional |
| Dimensions – Laser module | (𝜱)24 x (L)45 mm |
| Dimensions – Driver module | (L)79 x (W)37 x (H)34 mm |
| Weight | Laser module: 22gr Driver box: 100gr |
| Operating Temperature | -20Cᵒ up to +65Cᵒ |
| Storage Temperature | -30Cᵒ up to +70Cᵒ |
