Lapid Air (Cat. #2014300)
Compact long-range NIR laser pointer/illuminator.
This compact size laser provides the system designer the capability of integrating a powerful laser into the crowded space of the gyro-stabilized gimbals system. For small UAVs where the sizes do counts, a new design is provided, in which the diode is encapsulated in a sealed aluminum housing. This housing will be mounted inside the gimbals system, with a boresight mechanism and the optics.

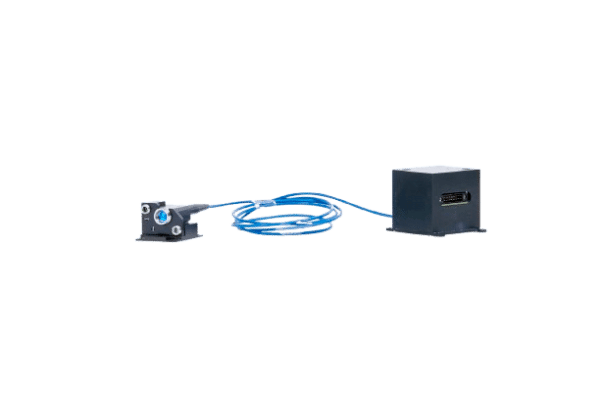

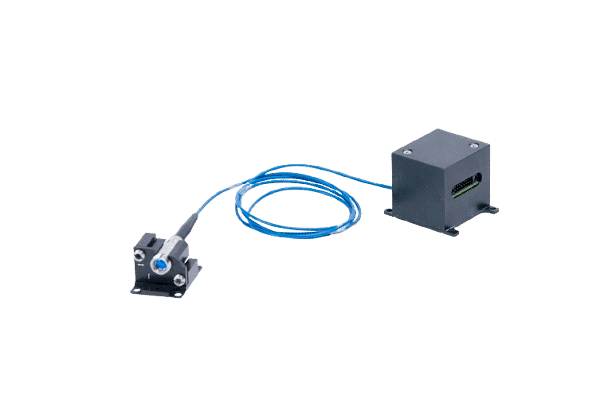

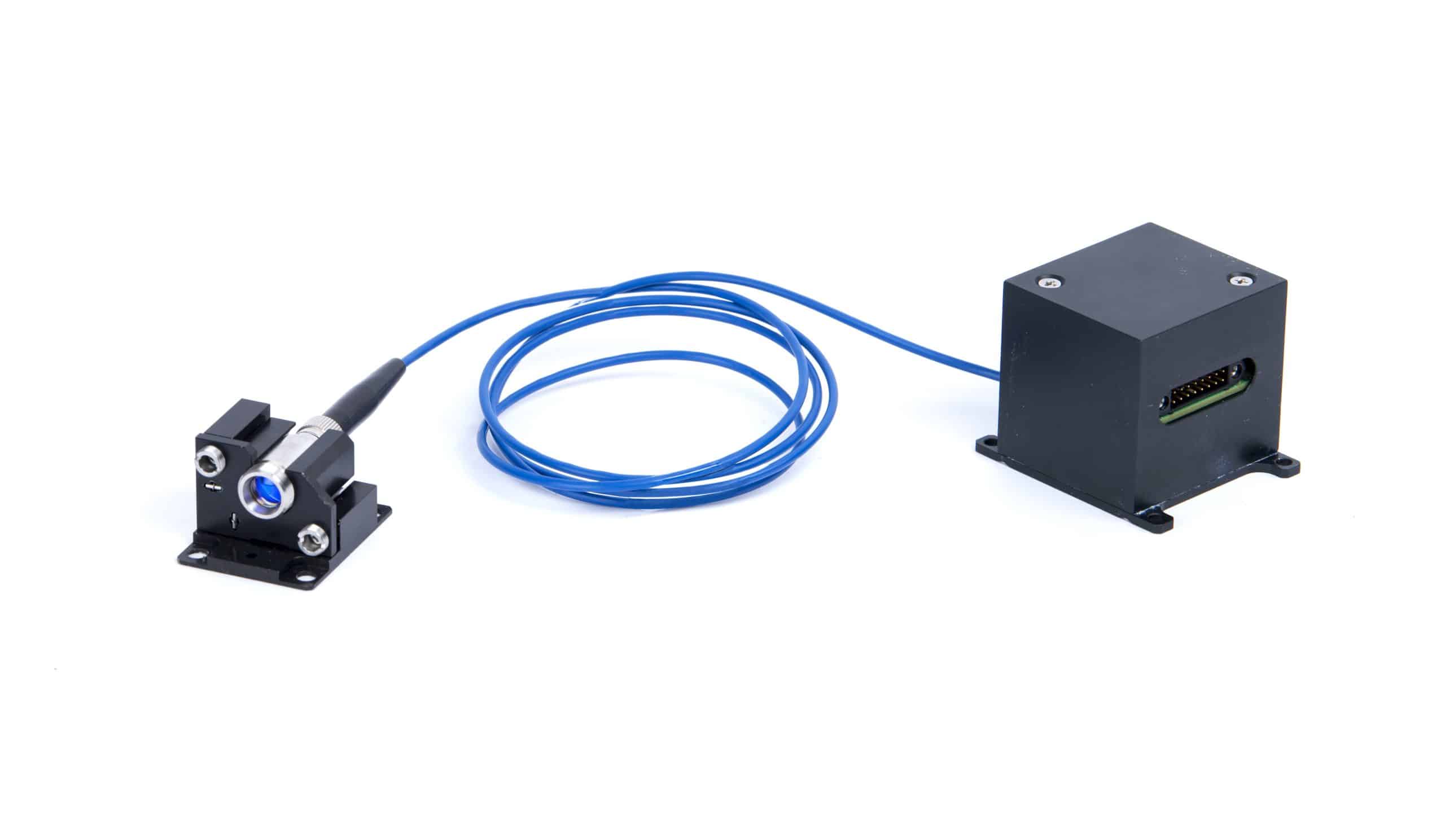

Since the weight on the gimbals is a significant problem, we split the system into the laser unit (laser and optics) and laser driver; therefore most of the weight can be located where ever the system designer will decide.
The uniqueness of this compact size laser is that it is able to illuminate a large surface at a wavelength of 865nm (NEAR IR).
Parameter | Value |
---|---|
Application: | Long range pointer / illuminator |
Operational Mode: | CW, Flash |
Wave Length: | 830nm |
Optical Output Power | 1.5W |
Pulse Rate | up to 5Hz |
Beam Divergence (70% of energy) | 4.3mRad |
Bore Sight | 2.1ᵒ tilt and 1.4ᵒ pan |
Operational Voltage | 28VDC |
Dimensions – Laser module | (H)40 x (L)30 x (W)25mm |
Dimensions – Driver module | (H)45 x (L)40 x (W)45mm |
Weight | 135gr |
