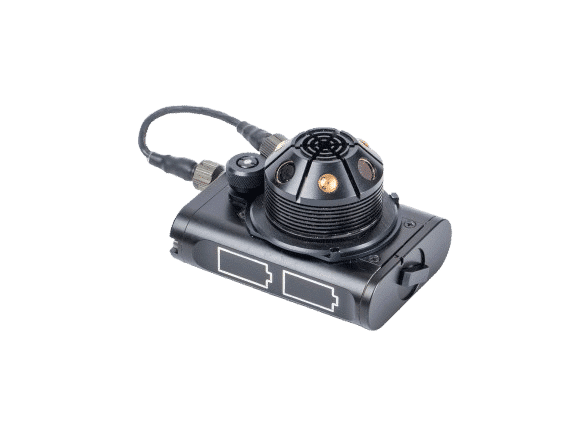

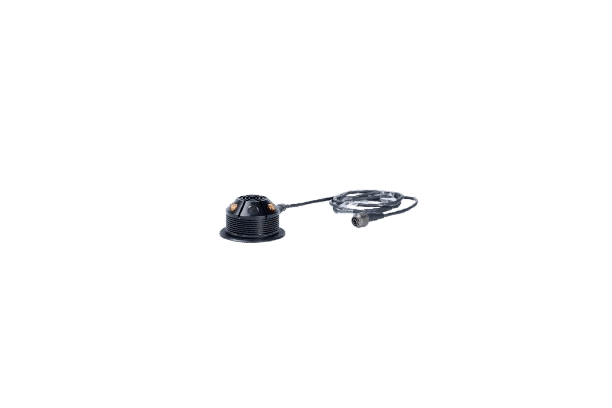

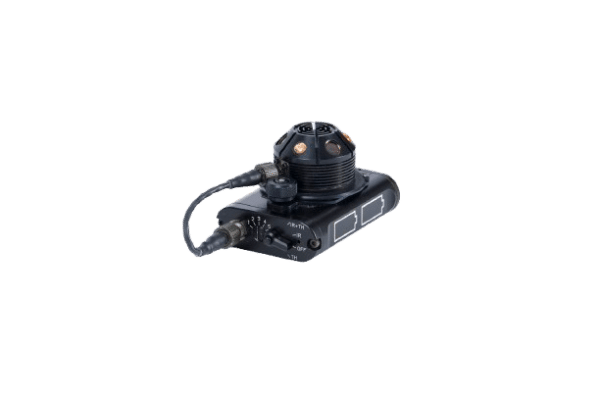

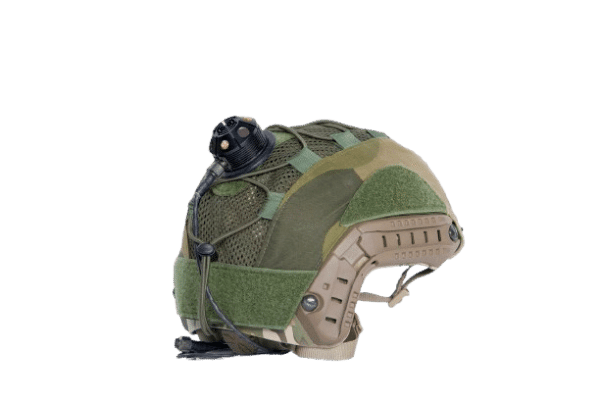

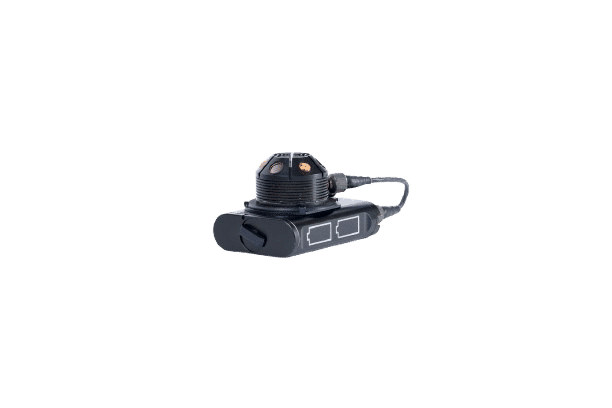

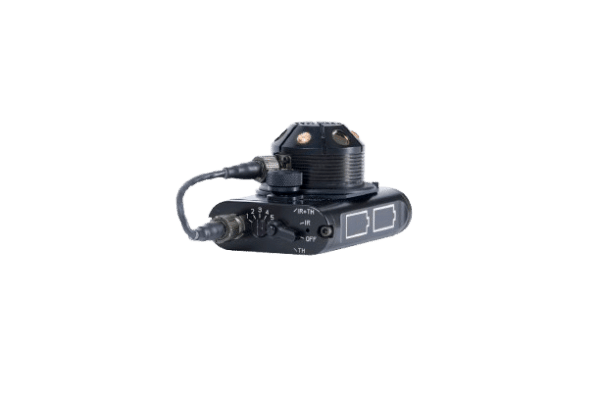

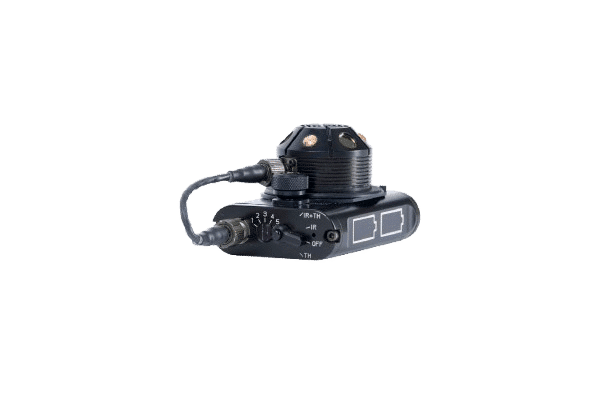

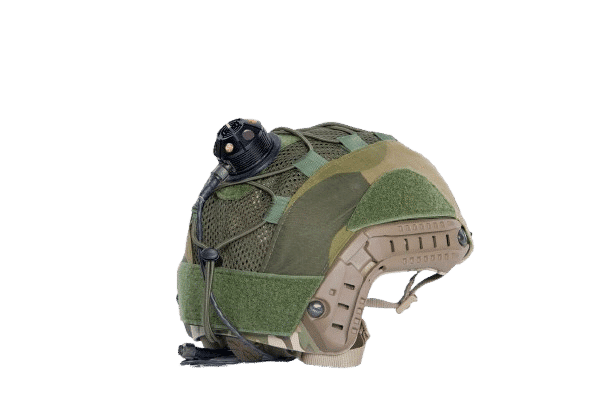

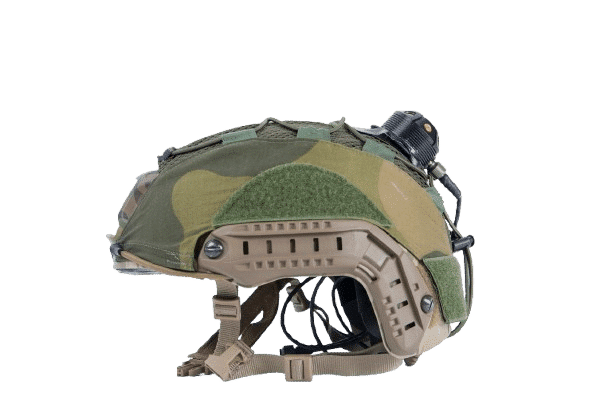

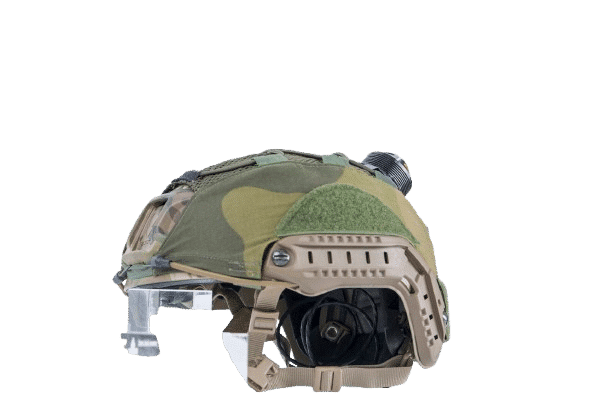

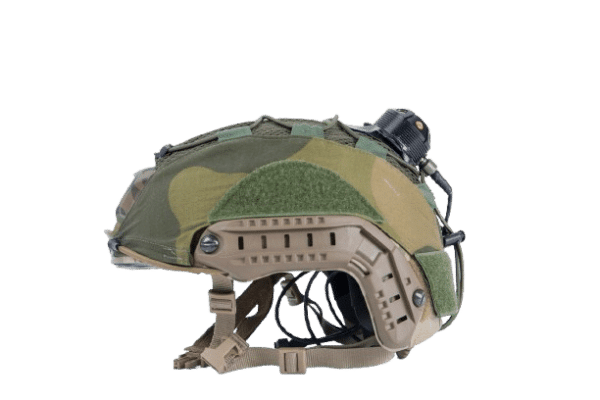

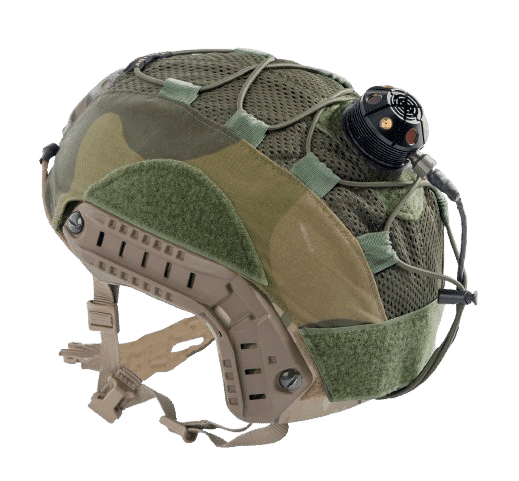

MS-OMR II C (Multi-Spectral, Omni, Medium Range) Vehicle & Helmet Mounted
The Thermal-Beacon is an innovative and unique infrared emitter, radiates in the thermal spectrum (most efficiently at 3-5 micron) and does not emit radiation in the visible or the near infrared region. It is used as an identification device in the thermal spectrum region, for use with military vehicles, yachts, police SWAT teams, SAR, emergency services and mountain rescue teams.

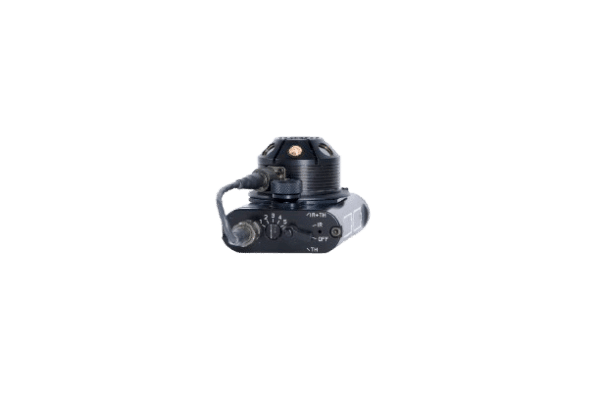

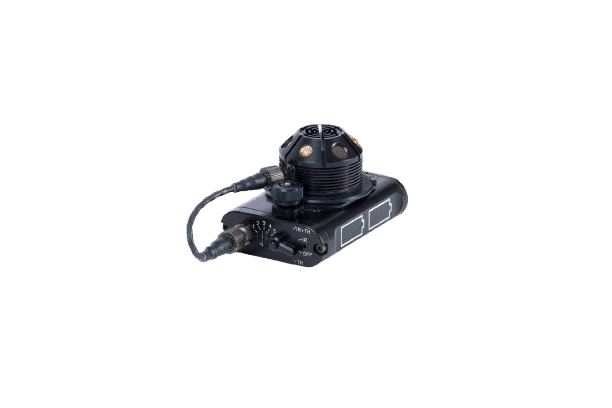

The MS (Multi-Spectral) version allows the user to control the spectrum of radiation from the following:
- Only thermal region (for thermal cameras)
- Only near infrared region (for image intensifiers and SLS)
- Both thermal and near-infrared regions simultaneously.
Unique Mechanical design allows the user to install the system in many different configurations.
| Parameter | Value |
|---|---|
| Detection range at 3-5μm using InSb Detector & 250mm lens: | 3km |
| Detection range at 3-5μm using Airborne Optics (Litening): | 15km |
| Detection range at NIR using any IR light intensifier: | 10km |
| Detection range at 8-12μm using microbolometer camera at narrow field: |
250m |
| Radiation divergence: | Half-sphere |
| Operational Voltage | 4 x CR123 batteries |
| Operational time: | 2 hours (at 1Hz) |
| Repetition Rate: | 0.5-2.5Hz, 5 predetermined frequencies |
| Dimensions- Beacon: | (H)31 x (L)--- x (W) Ø 48mm |

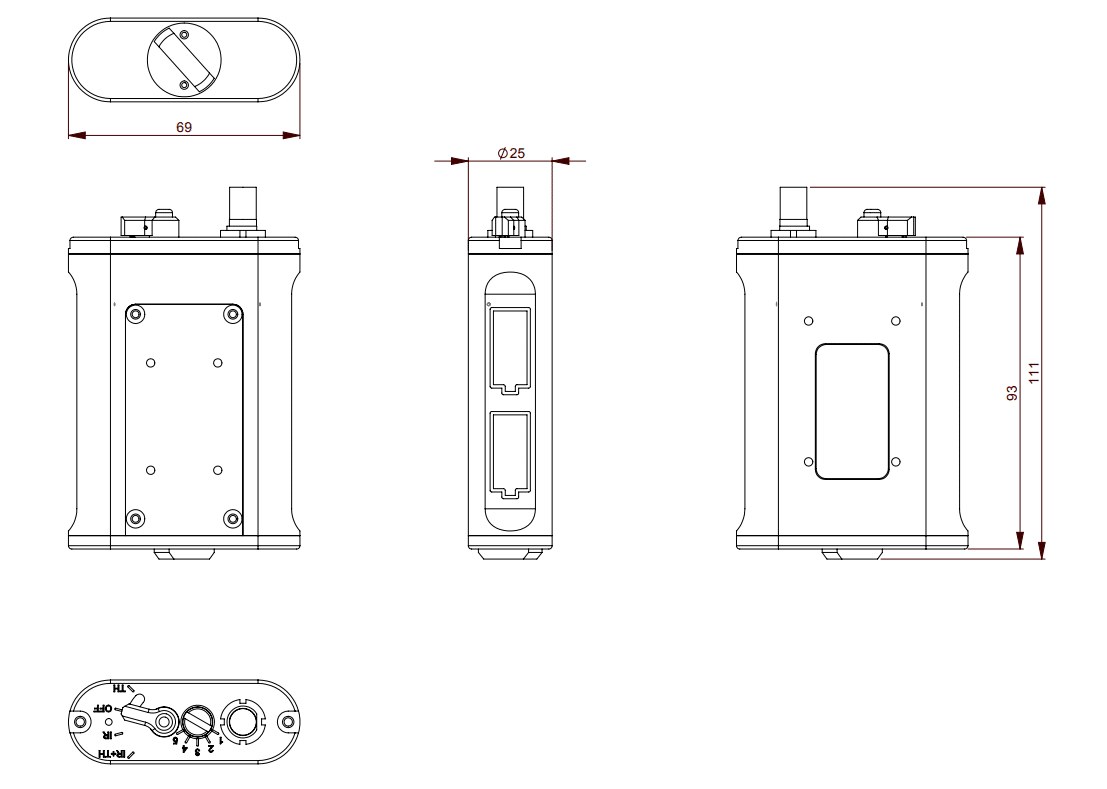

| Dimensions- Control box | (H)25 x (L)111 x (W) 69mm |
| Weight (without batteries & accessories): | Beacon: 72gr Control Unit: 223gr |
