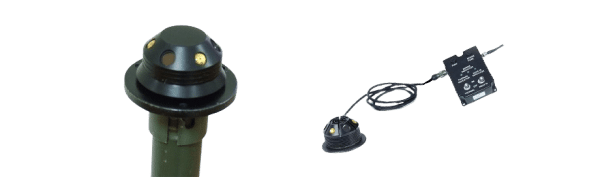

MS-OMR III (Multi-Spectral, Omni, Medium Range) Vehicle Mounted
The Thermal-Beacon is an innovative and unique infrared emitter, radiates in the thermal spectrum (most efficiently at 3-5 micron) and does not emit radiation in the visible or the near infrared region. It is used as an identification device in the thermal spectrum region, for use with military vehicles, yachts, police SWAT teams, SAR, emergency services and mountain rescue teams.
The MS (Multi-Spectral) version allows the user to control the spectrum of radiation from the following:
- Only thermal region (for thermal cameras)
- Only near infrared region (for image intensifiers and SLS)
- Both thermal and near-infrared regions simultaneously.
| Parameter | Value |
|---|---|
| Detection range at 3-5μm using InSb Detector & 250mm lens: | 3km |
| Detection range at 3-5μm using Airborne Optics (Litening): | 15km |
| Detection range at NIR using any IR light intensifier: | 10km |
| Detection range at 8-12μm using microbolometer camera at narrow field: |
250m |
| Radiation divergence: | Half-sphere |
| Operational Voltage: | 12/24VDC external |
| Operational time: | Power source |
| Repetition Rate : | 1Hz |
| Dimensions- Beacon: | (H)33 x (L)--- x (W) Ø 48mm |
| Dimensions- Control box | (H)25 x (L)111 x (W) 69mm |
| Weight (without batteries): | Beacon: 95gr Control Unit:800gr |
