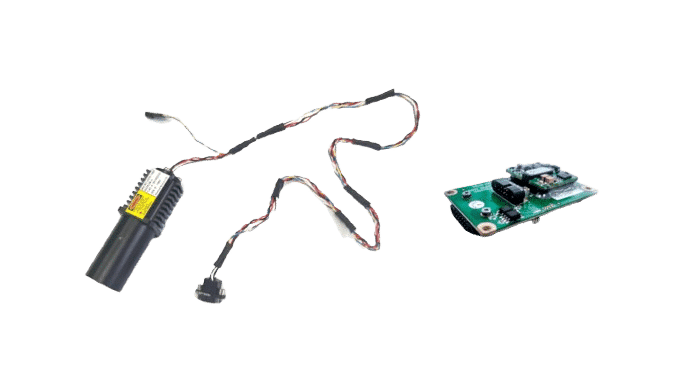

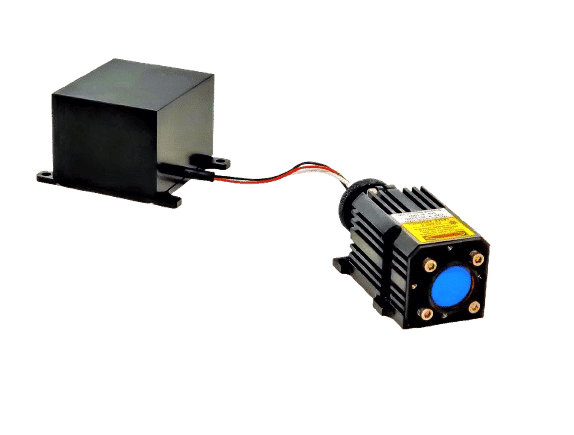

Compact long-range NIR laser pointer / illuminator, encapsulated in a sealed aluminum housing. This compact size laser provides the system designer the capability of integrating a powerful laser into the crowded space of the gyro-stabilized gimbals system. For small UAVs where the size does count, a new design is provided, in which the system is split into 2 parts, laser unit (laser and optics) and laser driver; therefore most of the weight can be located where ever the system designer will decide. This housing will be mounted inside gimbal systems, with a boresight mechanism and the optics.

Parameter	Value
Application:	Laser Pointer / Illuminator
Operational Mode:	CW, Flash
Wave Length:	860nm
Optical Output Power	Up to 2.2W
Pulse Rate	Up to 5Hz *By external pulsed input signal
Beam Divergence (70% of energy)	1mrad – 3.5mrad (average)
Bore Sight	Exist
Operational Voltage	28VDC
Dimensions – Laser module	(H)25 x (L)66 x (W)29mm
Dimensions – Driver module	(H)31 x (L)45 x (W)37mm
Weight	Laser module: 55gr Driver box: 73gr
Construction:	Black anodized aluminum
