LPT-110

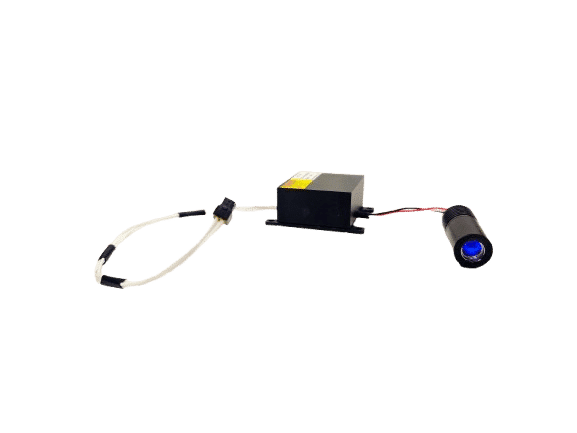

Miniature High power OEM NIR Laser for airborne applications. The system is a two-piece laser configuration to provide integration into smallest space possible with super low weight.
| Parameter | Value |
|---|---|
| Operational Mode | CW, Flash |
| Wavelength | 830nm |
| Optical Output Power | ≥1.7W CW (Class IV) (at room temp) |
| Repetition rate pulse mode * | 1.5 Hz *FLASH – up to 5HZ blinking |
| Beam Divergence | ≤2mRad X 4.5mRad |
| Beam shape | Elliptical |
| Operational voltage | 9 VDC |
| Dimensions | Optical unit: ɸ-14.7 x L-40.1 mm Electrical unit: (H)20 x (L)45 x (W)42.4 mm |
| Weight | Laser module ≤ 20 gr, electronic module: 25 ≤ gr |
| Altitude | Operational to 40,000 ft. |
| Operating Temperature | -25°C up to +55°C |
| Storage Temperature | -40°C up to +70°C |
| Vibration | Per MIL-STD-810F Method 514.5–II – loose cargo |
| Construction | Aircraft aluminum, black anodize. Stainless steel hardware |
