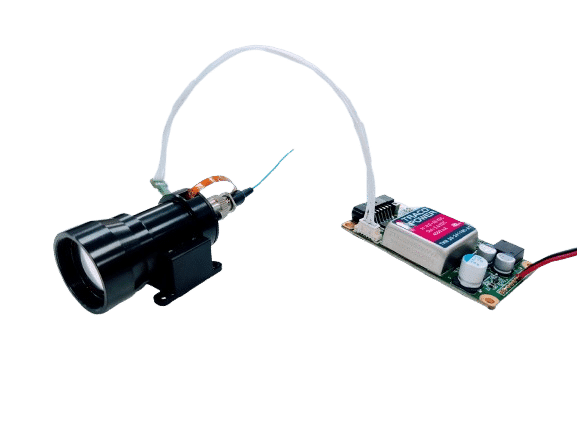

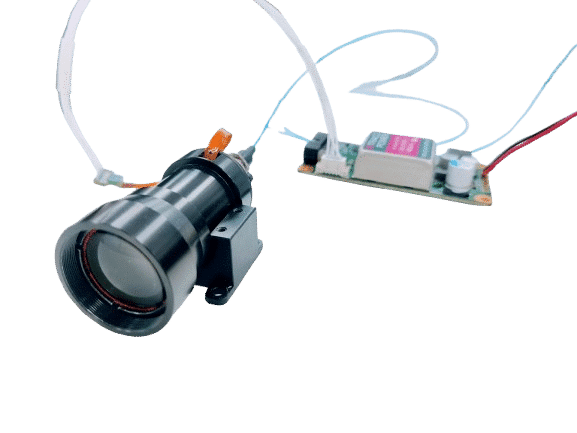

- The VariaBeam XACT® is a highly compact and unique laser Pointer-Illuminator module, enabling the user to vary the beam from 1mrad up to 13mrad without any moving parts
- the varying mechanism is fast and continuous
- the system could be synchronized with the viewing system to create a smooth zooming and illuminating experience while maintaining a simple operation
- The device contains a unique component that homogenizes the power distribution across the beam
- TEC-regulated laser-diode
- Power-regulated by thermal sensing
| Parameter | Value |
|---|---|
| Wavelength | 830nm (Other Wavelengths available) |
| Output Power | 2W (Other options available) |
| Beam Divergence (1/e) | From 1.1mrad to 6mrad (or 2-13mrad) |
| Operational Mode: | CW, Flash (up to 5Hz by pulsed input from customer to the ENABLE line) |
| Input | User Defined |
| ENABLE | User Defined |
| Monitoring Output | Exist |
| Bore-Sight | Optional |
| Dimensions – Laser module | (𝜱)24 x (L)72.3 |
| Weight (without PCB) | Laser module: 50gr |
| Operating Temperature | -20Cᵒ up to +65Cᵒ |
| Storage Temperature | -30Cᵒ up to +70Cᵒ |

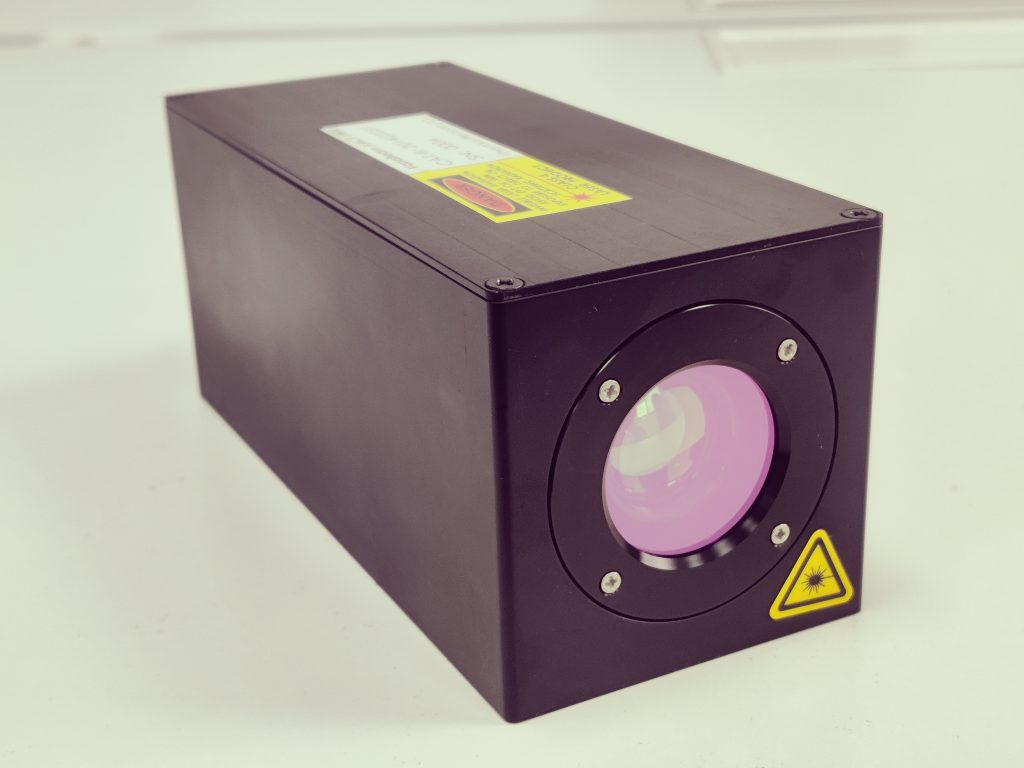

Closed-Frame Variant:
