MS-DMR (Multispectral, Directional, Medium range) MKII

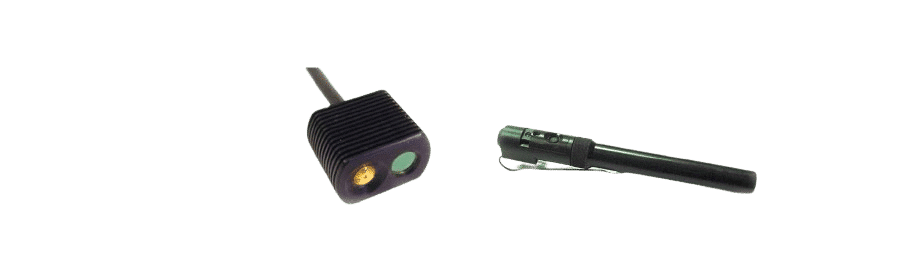

This is a personal, multi-spectrum thermal beacon, radiates in the thermal spectrum (most efficiently at 3-5 micron) and does not emit radiation in the visible or the near infrared region. It is equipped with a personal battery unit (PBU) and it is designed to be carried by the user. The beacon can be connected to the PBU by either a 3-meter flexible cable (for helmet, vehicle or other installation) or a short rigid connection (allowing the beacon to be handheld and aimed like a flashlight).
The MS (Multi-Spectral) version allows the user to control the spectrum of radiation from the following:
- Only thermal region (for thermal cameras)
- Only near infrared region (for image intensifiers and SLS)
- Both thermal and near-infrared regions simultaneously.
Parameter | Value |
---|---|
Detection range at 3-5μm using InSb Detector & 250mm lens: | 3km |
Detection range at 3-5μm using Airborne Optics (Litening): | 15km |
Detection range at NIR using any IR light intensifier: | 10km |
Radiation divergence: | 40 degrees |
Operational Voltage: | 4 x CR123 batteries |
Operational time: | 2 hours |
Repetition Rate: | 1Hz |
Dimensions- Beacon: | (H)18 x (L)25 x (W)18mm |
Dimensions- Control box | (H)140 x (L)--- x (W) Ø 22mm |
Weight (without batteries): | Beacon: 63gr Control Unit: 207gr |
