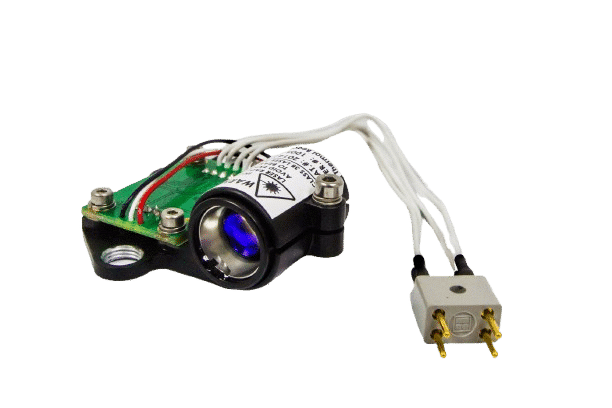

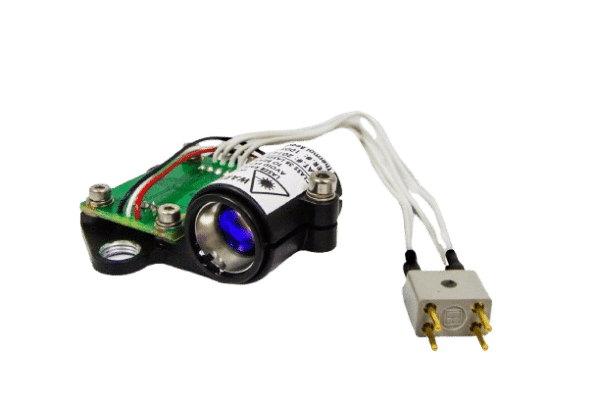

This compact size laser provides to the system designer the capability of integrating a very powerful laser into the crowded space of the gyro-stabilized gimbals system. For small UAVs where the sizes do counts, a new design is provided, in which the diode is encapsulated in a sealed aluminum housing. This housing will be mounted inside the gimbals system, with a boresight mechanism and the optics.
Since the weight on the gimbals is a significant problem, we split the system into the laser unit (laser and optics) and laser driver; therefore most of the weight can be located where ever the system designer will decide.
The uniqueness of this compact size laser is that it able to illuminate a large surface at a wavelength of 865nm (NEAR IR).
|Application:||Medium / short range pointer|
|Operational Mode:||CW, Flash|
|Optical Output Power||180mW|
|Pulse Rate||up to 5Hz|
|Beam Divergence (70% of energy)||0.5mRad|
|Bore Sight||not included|
|Dimensions||(H)20 x (L)45 x (W)45mm|
