| Parameter | Value |
|---|---|
| Detection Range: | |
| At 3-5μm using InSb Detector & 250mm lens | 5km |
| At 3-5μm using Airborne Optics (Litening) | >15km |
| At 8-12μm using a microbolometer camera at narrow field | Up to 2km |
| Near-IR Head: | |
| Using IR light intensifier | 10km |
| SWIR Head: | |
| Using SXGA InGaAs camera at 0.25⁰ FOV | >3km |
| Operation Voltage | 4 CR123 batteries |
| Operational Time | 3 hours (Thermal Mode at 0.5Hz) |
| Radiation divergence | Half-sphere |
| Repetition Rate | 0.5-2.5Hz, 5 predetermined frequencies |

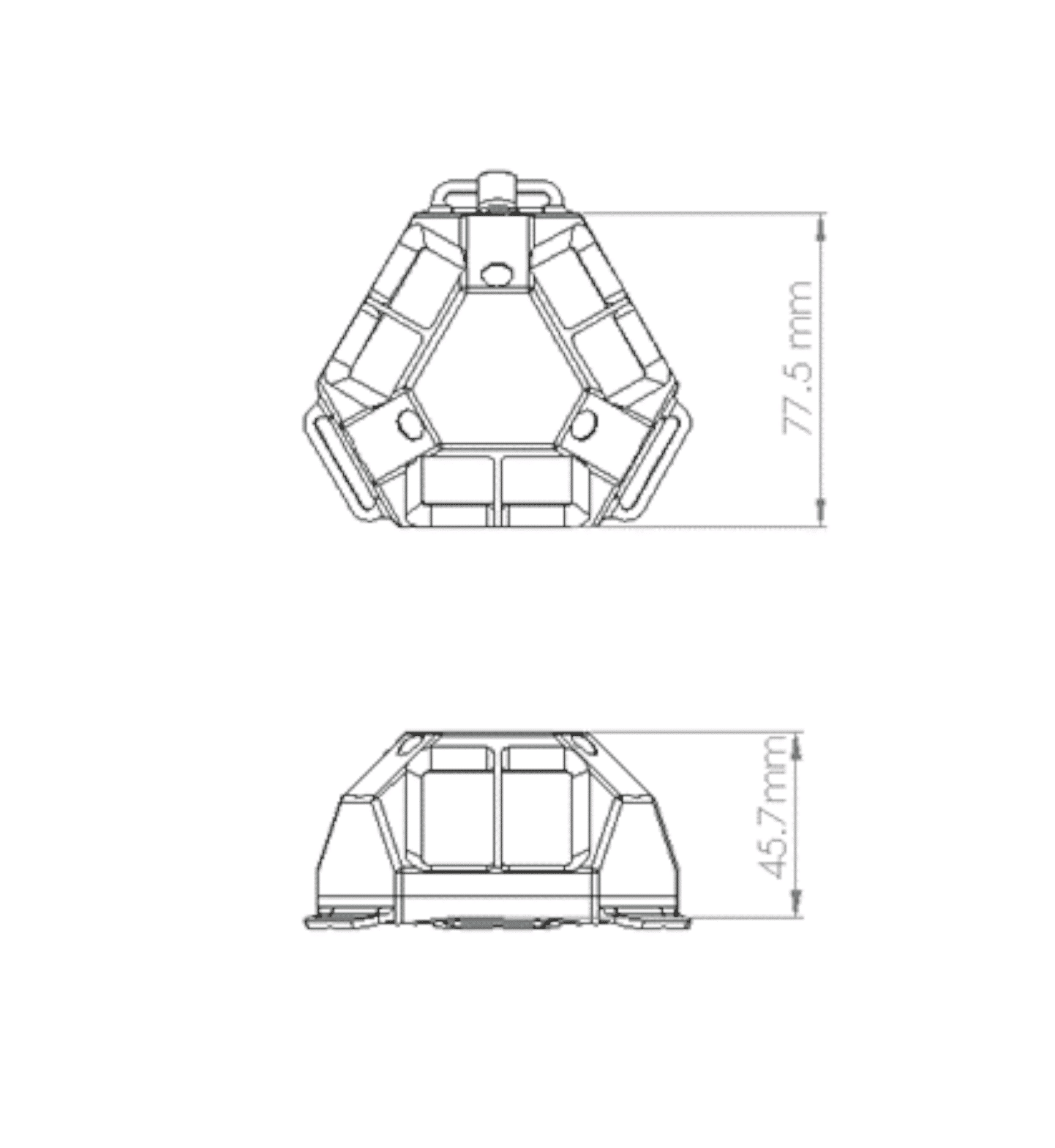

| Dimension Beacon | H: 45.7mm L/W: 77.5mm |

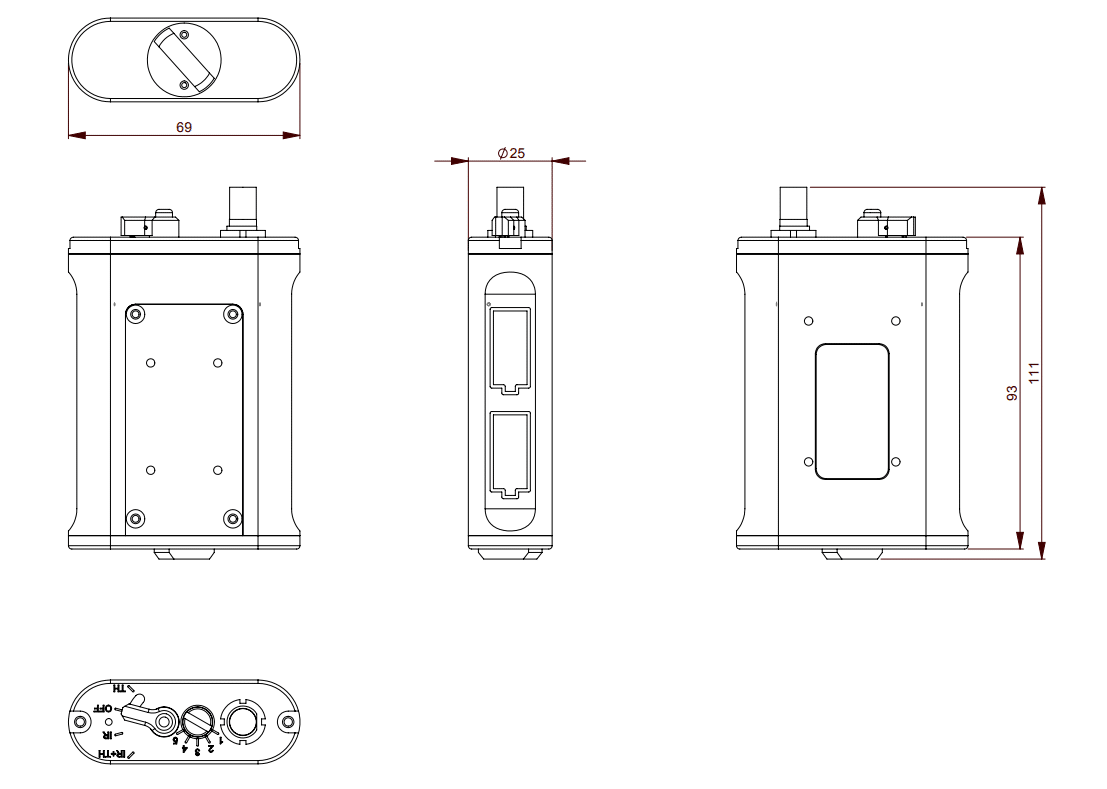

| Dimension Control Box | H: 25mm L: 111m W: 69mm |
| Weight (without batteries & accessories): | Beacon: 181gr Control Box: 223gr |
| Operating Temperature | -20Cᵒ up to +55Cᵒ |
| Storage Temperature | -40Cᵒ up to +71Cᵒ |
