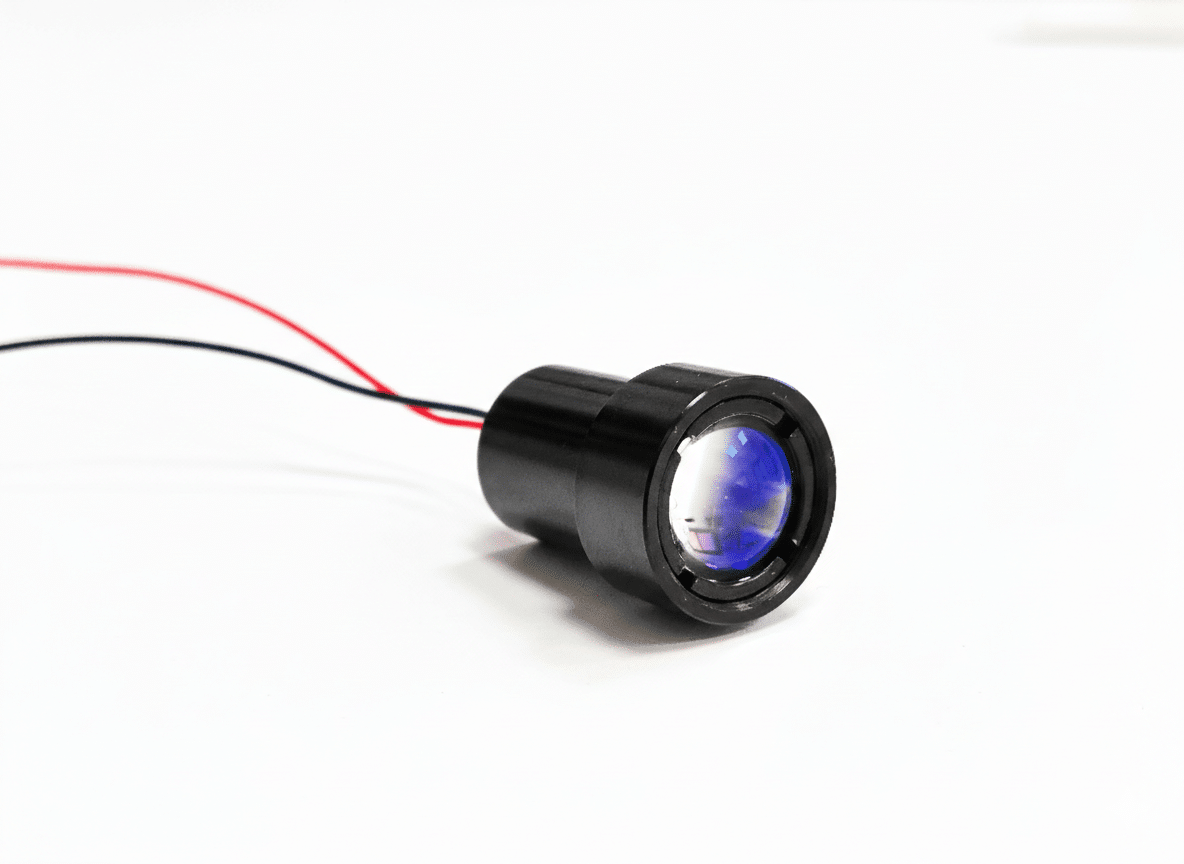

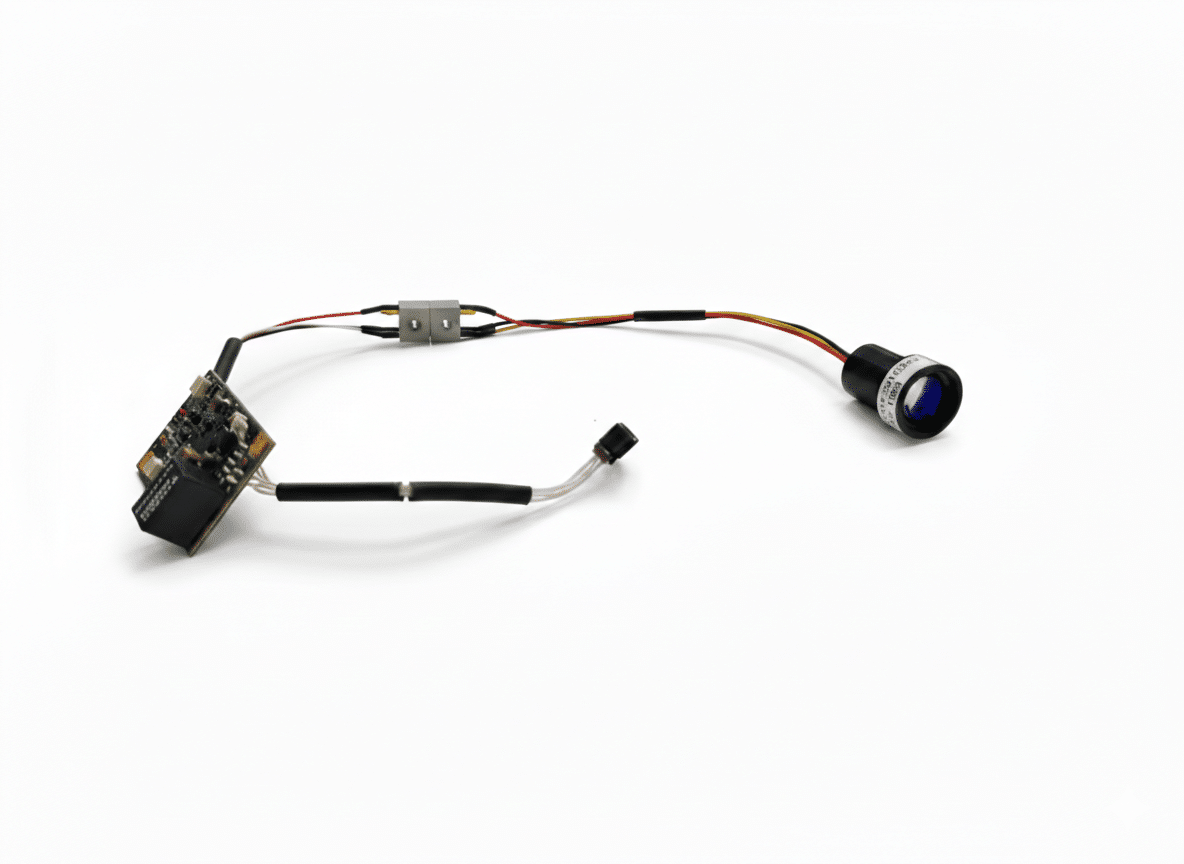

Micro Lapid 200P+

This near-infrared laser pointer is used to point out targets at extreme long ranges due to its exceptionally narrow divergence. Its extremely miniature size provides the system designer the capability of integrating a very powerful laser into the crowded space of the gyro-stabilized gimbals system.

Parameter	Value
Application:	Very long range pointer
Operational Mode:	CW, Flash
Wave Length:	850nm (other wavelength available)
Optical Output Power	200mW
Pulse Rate	up to 5Hz
Beam Divergence (70% of energy)	<0.3mRad
Operational Voltage	28VDC (other voltage ranges available)
Dimensions	Optics: (Ø)18.6 x (L)25.2 PCB: (L)42 x (W)28mm
Weight	25.4gr
