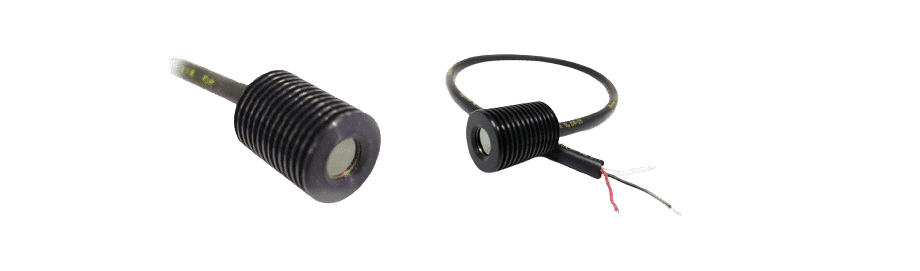

Thermal Beacon’s OEM Modules for SAR Applications

The Thermal BeaconTM is a unique infrared emitter that radiates in the thermal spectrum (most efficiently at 3-5 micron) and does not emit radiation in the visible or the near infrared region. It is based on solid-state technology with no moving parts, making a lightweight compact product, with low power consumption able to fit in a small handheld radio. Combining a Thermal Beacon with the RF beacon will improve significantly the chances to retrieve a survivor in case of emergency on board Yachts, Planes & passengers, Vehicles & emergency rescue teams like mountaineers, skiers, oil drillers, etc.

Parameter	Value
Source:	Black body IR emitter
Detection ranges:	3 km using 3-5μm InSb detector & 250mm lens, 15 km with airborne optics, 250m with 8-12 microbolometer camera
Radiation divergence:	40°
Repetition Rate :	1.5Hz
Power supply voltage:	12V
Fault indication (output):	5V- 1.5Hz, in case of no fault
Average power consumption:	1W
Dimensions (without cable):	Ø- 21mm x 29.5mm
Weight:	50gr
Construction:	Black anodized aluminum
Water resistance:	IP67
